產品介紹

---

---

Weir閥門和控制英國公司是Weir集團全球工程公司的一部分，隨著BV590i(Globe)和BV591i(Angle)系列的發布，大大增強了Blakeborough®罐式導向控制閥系列。新設計的罐式導向閥象征著流量控制技術的一個轉變;為客戶提供具有價格競爭力的過程臨界控制閥。

Weir研發團隊挑戰傳統的球閥設計，通過大量計算流體動力學和流量測試來探索創新的新型幾何體形狀。乍看之下，新的Blakeborough閥體與目前市場上的任何其他控制閥都不同，且符合ASME B16.34和ISA 75.0等行業標準。因此，輕量化設計的閥體可提供較大的流量能力。這意味著Weir可以在保持閥門容量的同時縮小提供的閥門尺寸，終可為不同應用的終端用戶節省資金。

修剪技術也發生了重大變化，改善了幾何設計，現在已經實現模塊化，通過備件庫存和調節附加制造的罐修剪，降低運營成本。解決方案可以大大減少復雜修剪部件的交貨時間。

Blakeborough®控制閥專為需要流量控制性能和安全性的苛刻環境的極限標準而設計。多年來，Blakeborough®控制閥的多功能系列配置可以滿足客戶流程的多樣化需求，而今天，Weir可以為客戶提供超過1400萬種變化。

Weir閥門和控制公司總經理Mike Mannion評論說：

“我們的研發團隊開發了新的Blakeborough解決方案，因為在Weir，我們始終積極應對不斷變化的技術要求和客戶所面臨的挑戰。我們很高興推出新的Blakeborough型號，并將繼續尋求機會進一步優化我們的流量控制解決方案。我們的終目標是確保客戶在流量控制設備的使用壽命期內獲得持久的收益和卓越的價值。“



設計特點：

---

---

•符合ASME B16.34的結構完整性設計;

•符合ASME B16.34的優化流程;

•符合ISA-75.08.06的輥身x輥身長度;

•提供V級密封;

•可提供完整的或減少的孔徑修剪選項;

•強大的防爆閥桿設計，增強安全性;

•可替換的盒式罐，便于維護;

•適用于附加制造的內部修剪設計。

當前可用壓力等級：

•ASME 900級和1500級

現有可用尺寸：

40毫米至250毫米(1 1/2“至10”)



關于鼎恒石油

---

---

四川鼎恒石油是Weir SPM的授權代理商，若需要購買SPM產品或需要了解產品詳細參數及相關疑問，可直接進入鼎恒石油官網咨詢網站客服或者撥打銷售熱線18000522697。

四川鼎恒石油機械設備有限公司(http://m.kawai-kstw.com)是一家擁有進出口經營權，長期從事國內外石油天然氣設備和配件的專業銷售公司。鼎恒石油公司總部設在四川成都，在加拿大大不列顛哥倫比亞省成立了分公司。我公司與多家世界知名制造廠商建立了緊密的合作關系。





注：該文章由鼎恒石油編譯，轉發須注明出處。

附英文原文：

Next generation Weir control valve designs optimize performance at competitive value

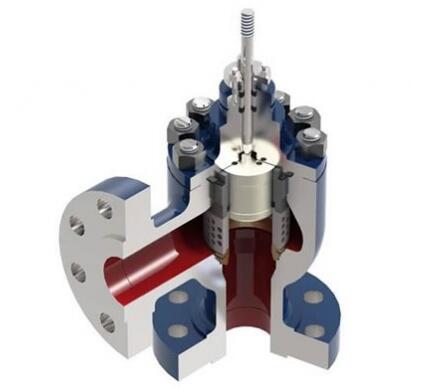

Elland, UK - Weir Valves & Controls UK, part of global engineering firm Weir Group, has enhanced the Blakeborough® cage guided control valve range with the release of the BV590i (Globe) and BV591i (Angle) series. The new designs of cage-guided valves represent a step-change in flow control technology; offering customers process critical control valves at competitive prices.

At first glance the new Blakeborough® valve bodies are unlike any other control valve currently on the market. Conforming to industry standards such as ASME B16.34 and ISA 75.0, the Weir research and development team challenged conventional globe valve designs, exploring innovative new body geometries though extensive computational fluid dynamics and flow testing. As a result the valve bodies offer superior flow capacities within a lightweight design. This means Weir can reduce the offered valve size, while maintaining the valve capacity, ultimately resulting in a saving to end users across different applications.

The trim technology has also undergone significant changes to improve the geometric design, which is now modular, resulting in lower operational costs through spares inventory and the accommodation of additive manufactured cage trims. Solutions which can radically reduce lead times for complex trim components.

Blakeborough® control valves are designed specifically for demanding environments where the ultimate standards of flow control performance and safety are required. Over the years the highly versatile range of Blakeborough® control valves have been configured to meet the diverse requirements of customer processes, and today Weir can support customers with over 14 million variations.

Mike Mannion, Managing Director, Weir Valves and Controls UK, commented:

“Our research and development team developed new Blakeborough solutions because at Weir we believe in proactively addressing the changing technical requirements and challenges faced by our customers. We are excited by the launch of our new Blakeborough models and will continue to seek opportunities to further optimize our flow control solutions. Our ultimate goal is to ensure customers access enduring benefits and superior value through the lifetime of their flow control equipment.”

Design Features:

Structural integrity designed to ASME B16.34;

Optimized Flow Path in accordance with ASME B16.34;

Face x Face lengths in accordance with ISA-75.08.06;

Class V Sealing offered;

Full and reduced bore trim options available;

Robust Anti-Blowout stem design for enhance safety;

Replaceable cartridge style cages for easy maintenance;

Internal trim design suitable for Additive Manufacture.

Current Pressure Ratings Available:

ASME Class 900 and 1500

Current Sizes Available:

40 mm to 250 mm (1 1/2” to 10”)
